Repair Jig / Fixture Model
$4.99

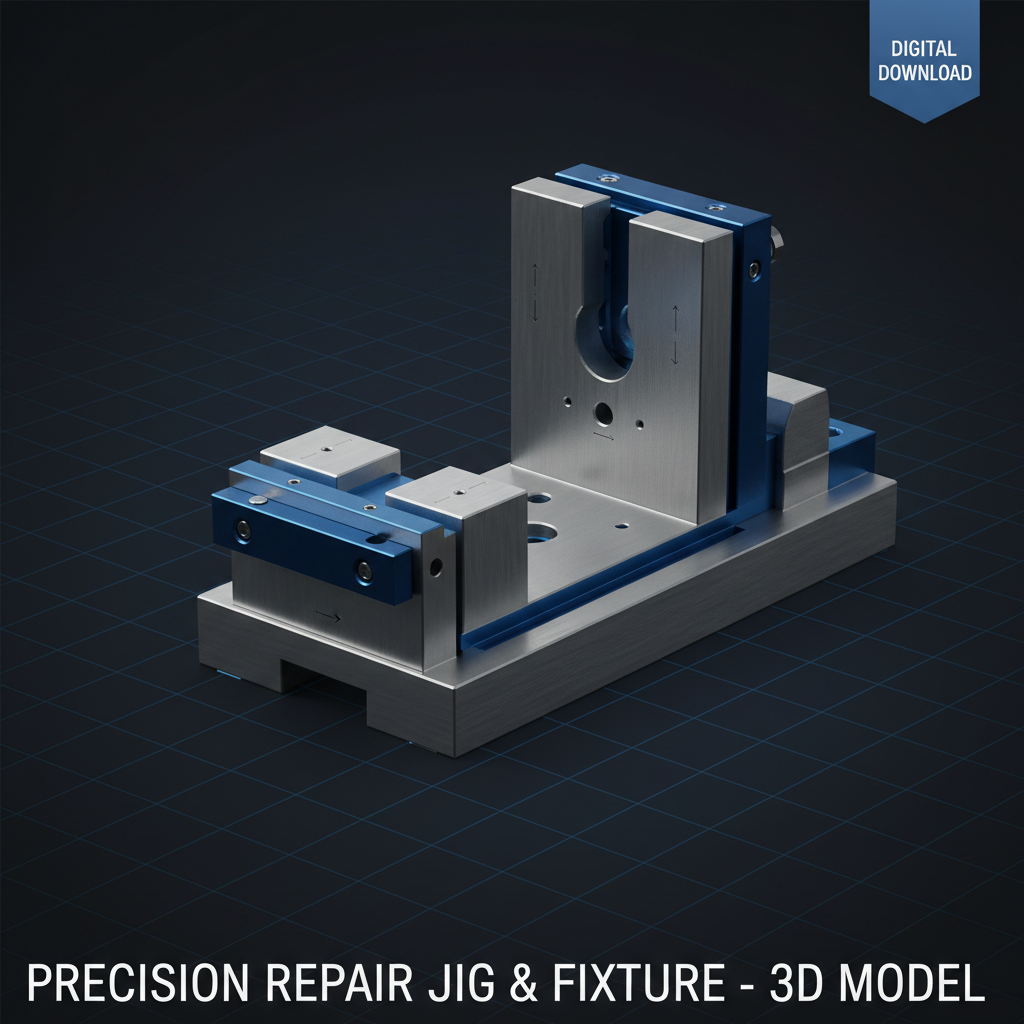

This 3D model represents a functional repair jig or fixture developed and refined through decades of hands-on restoration work at Baron Machine Company. Whether you are rebuilding worn shafts, re-boring housings, or holding irregular parts for re-machining, this fixture design has been proven on our shop floor.
The model includes all critical mounting points, clamp locations, and datum references. Ideal for shops that handle repair and overhaul work and need reliable workholding solutions without designing from zero.
What's Included:
- 1x 3D model of repair jig/fixture (.STEP and .IGES)
- Setup notes and usage instructions (.PDF)
Formats: .STEP, .IGES — For: Machine shop owners, maintenance technicians, repair engineers
